ABB 5SHY3545L0016 in stock

Short Description:



  • ABB 5SHY3545L0016 (Core IGCT Device):
  • Device Type: Integrated Gate Commutated Thyristor (IGCT)
  • Rated Voltage (VDRM/VRRM): Typically 4500 V (4.5 kV). Ideal for medium to high-voltage power conversion.
  • Average On-State Current (ITAV): High current handling, often hundreds to thousands of Amperes, for high-power applications.
  • Surge Current (ITSM): High non-repetitive surge current withstand capability, ensuring resilience during fault conditions.
  • Package: High-power disc-type (press-pack) design, optimized for efficient thermal transfer.


  • FOB Price: US $100 - 9,999 / Piece
  • Min.Order Quantity: 1 Piece/Pieces
  • Supply Ability: 3000Piece/Pieces per Month
  • Product status: In stock
  • Brand: ABB
  • Shipping location: Xiamen
  • Product Detail

    IN Stock, 100% full New! Original Factory Seal !

    Product Tags

    ABB 5SHY3545L0016: The Core of Robust High-Voltage Power Systems

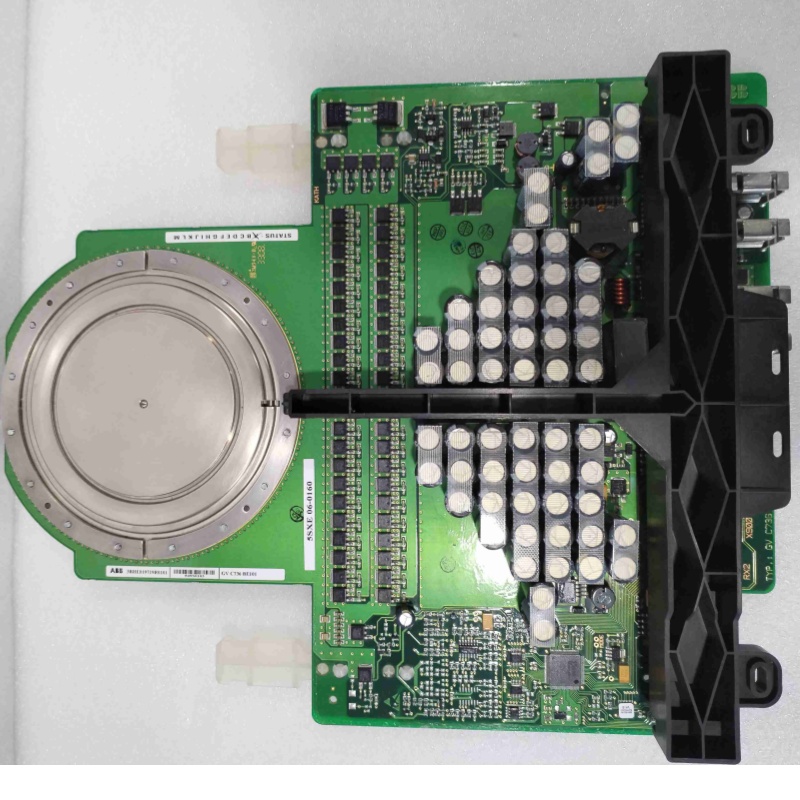

    The ABB 5SHY3545L0016 is a high-performance Integrated Gate Commutated Thyristor (IGCT), foundational to advanced power electronics. Typically delivered as part of the 3BHB020720R0002 module and precisely controlled by the 3BHE039203R0101 GVC736CE101 gate unit, this ABB solution offers exceptional efficiency and reliability for critical high-power applications.



    Key Advantages for High-Power Applications



    This integrated ABB system delivers:

    • Optimized Energy Efficiency: Minimizes losses for substantial energy savings and reduced heat.
    • Unmatched Reliability: Robust design ensures long-term stability and high thermal cycling capability.
    • Precise Power Control: Fast and dynamic switching for responsive system management.
    • High Power Density: Compact design delivers maximum power output in minimal space.
    • Integrated Safety: Gate unit provides essential protection features and diagnostics.
    • Seamless Integration: Optical fiber communication ensures noise immunity and high-voltage isolation.



    Technical Snapshot



    • Core Device: ABB 5SHY3545L0016 (IGCT)
    • Module Assembly: ABB 3BHB020720R0002
    • Gate Unit: ABB 3BHE039203R0101 GVC736CE101
    • Voltage Rating (VDRM/VRRM): Typically 4500 V (4.5 kV).
    • Current Handling (ITAV): Designed for high current loads (refer to datasheet for specific Amperes).
    • Protection: Integrated overvoltage, overcurrent, and overtemperature monitoring via gate unit.
    • Package: High-power disc-type IGCT within a robust module.



    Where It’s Used: Critical Applications



    This powerful ABB IGCT solution is indispensable in:

    • HVDC Transmission: For efficient long-distance power grids.
    • FACTS Devices: Enhancing grid stability and power quality (STATCOM, SVG).
    • High-Power Industrial Drives: Controlling large motors in mining, metals, and pulp & paper.
    • Renewable Energy Integration: Connecting large-scale wind and solar farms to the grid.
    • Active Power Filters: Improving power quality and harmonic mitigation.
    • Railway Traction Systems: Providing reliable power for electric trains.

    Choosing the ABB 5SHY3545L0016 with its 3BHB020720R0002 module and 3BHE039203R0101 GVC736CE101 gate unit means investing in cutting-edge efficiency, unwavering reliability, and superior control for your most critical high-power systems.
