ABB GDD471A001 2UBA002322R0001 Power Unit Control Board | ACS580MV Drive Spare Part

Short Description:

Original ABB GDD471A001 (2UBA002322R0001) power unit control trigger board for ABB ACS580MV medium voltage inverter. Conformal coated PCB, fiber‑optic communication, new surplus & fully‑tested used stock, pre‑shipment function test, worldwide export.

FOB Price: US $100 - 9,999 / Piece

Min.Order Quantity: 1 Piece/Pieces

Supply Ability: 3000Piece/Pieces per Month

Product status: In stock

Brand: ABB

Shipping location: Xiamen

Send email to us Download as PDF

Product Detail

IN Stock, 100% full New! Original Factory Seal !

Product Tags

ABB GDD471A001 2UBA002322R0001 Power Unit Control Board For ACS580MV Medium‑Voltage Inverter

Product Overview

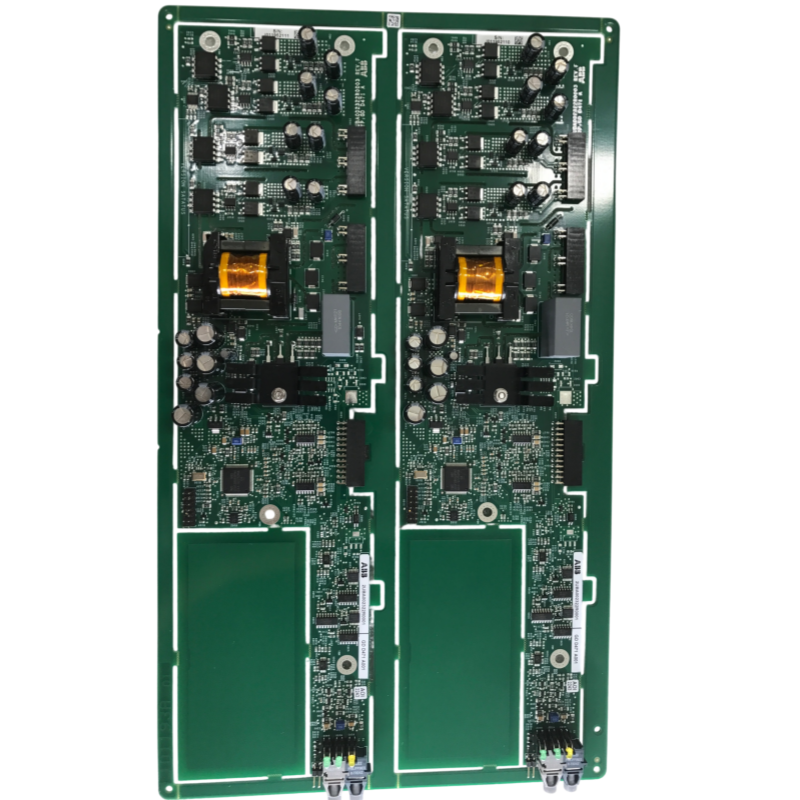

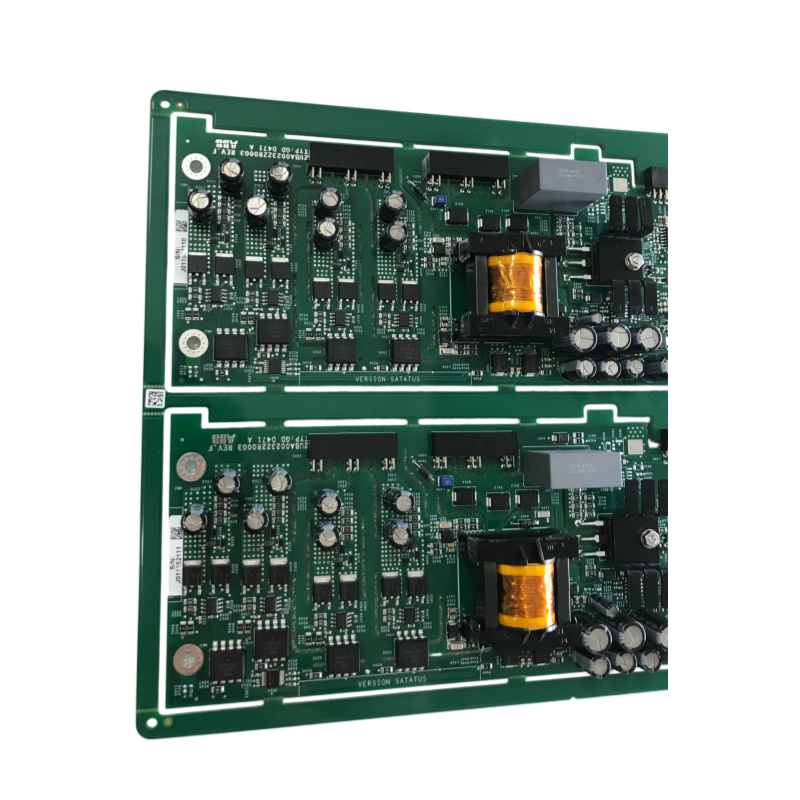

The ABB GDD471A001, OEM part number 2UBA002322R0001 is a power unit trigger & control board designed exclusively for the ABB ACS580MV series medium‑voltage (6kV /10kV) variable‑frequency inverter power cell. This board receives PWM control commands via fiber‑optic interface from main drive controller, generates multi‑channel IGBT gate drive pulses, executes real‑time signal acquisition and comprehensive unit protection logic. It monitors over‑current, over‑voltage, under‑voltage, over‑temperature and fiber link faults, and blocks drive pulses immediately when abnormal conditions occur to protect power cell components. PCB adopts conformal tropicalization coating for anti‑moisture, anti‑dust and anti‑harmonics performance, suitable for harsh industrial site environment. Commonly used for power cell maintenance, drive cabinet retrofit and emergency spare replacement of ACS580MV high‑voltage frequency converter. We supply original surplus‑unused and pre‑tested used units. Every board will pass power‑on, fiber communication and trigger function inspection before shipment.

Key Features

Special control & trigger board for ABB ACS580MV medium‑voltage inverter power cell
Fiber‑optic communication link with main controller for strong noise immunity
Multi‑channel IGBT gate drive pulse output
Built‑in multi‑protection: over‑current, over‑voltage, under‑voltage, overtemperature, fiber‑break fault detection
Instant pulse blocking for power‑cell safety protection
Conformal coated PCB for harsh industrial environment
On‑board LED indicators for power, communication and fault diagnosis
Expandable on‑board memory via SODIMM slot
OEM part number: GDD471A001 / 2UBA002322R0001

Compatibility Information

Compatible System

ABB ACS580MV medium‑voltage frequency converter (6kV & 10kV power cell unit)

Interchangeable Part Numbers

Main PN：2UBA002322R0001 (PCB marking: GDD471A001)
Alternative replacement：No direct drop‑in substitute model available

Technical Specifications

Item	Specification
Model	GDD471A001
OEM Order Code	2UBA002322R0001
Brand	ABB
Product Type	Power Unit Control / Trigger Board
Applicable Equipment	ABB ACS580MV 6kV /10kV medium‑voltage inverter power cell
Communication	Fiber‑optic link to master controller
Core Hardware	Embedded processor, onboard 256MB memory, expandable up to 768MB
Protection Function	Over‑current, over‑voltage, under‑voltage, overtemperature, fiber‑break detection
PCB Treatment	Conformal tropicalization coating
Operating Temperature	-15 ℃ ~ +60 ℃
Storage Temperature	-40 ℃ ~ +85 ℃
Dimension (H×W×D)	108.9 × 25.9 × 139.7 mm
Weight	approx. 1.22 kg
HS Code	85389099
Origin	Switzerland
Mounting	Installed inside ACS580MV power cell cabinet

Applications

Power plant ACS580MV medium‑voltage drive maintenance & spare replacement
Mine heavy‑duty medium‑voltage frequency converter retrofit project
Petrochemical plant high‑voltage inverter power‑cell repair
Water‑supply & pump station medium‑voltage drive cabinet overhaul
Cement & metallurgy industry variable‑frequency drive emergency spare backup

Product Condition & Supply Terms

Available stock condition： ✅ New Surplus Unused: original stock, no field installation ✅ Used & Fully Tested: dismantled from working power cell, full function tested before dispatch

All boards pass power‑on test, fiber‑optic communication test and trigger signal inspection before delivery. Commercial invoice and packing list can be provided for global customs clearance. Limited warranty is available for tested spare parts.

Technical Resources

Download Datasheet: ABB GDD471A001 2UBA002322R0001 Datasheet PDF

Frequently Asked Questions

What is ABB GDD471A001 2UBA002322R0001 used for?

GDD471A001 (2UBA002322R0001) is power‑cell trigger control board for ACS580MV medium‑voltage inverter. It generates IGBT drive pulses and executes complete protection logic for power cell unit.

Which device does this board fit?

It is dedicated for ABB ACS580MV 6kV /10kV medium‑voltage frequency converter power cell, please confirm your power‑cell version before ordering.

Does it support fiber‑optic communication?

Yes, it adopts fiber‑optic interface to communicate with main controller, improving anti‑interference performance inside high‑voltage cabinet.

Is there conformal coating on PCB?

Yes, the PCB is conformal tropicalization coated for moisture, dust and harmonic resistance in industrial cabinet environment.

H3：Will you test boards before shipment?

Surplus‑unused boards go through visual & power‑on inspection. Used units are fully tested including fiber communication and trigger output function before shipment.
