product overview

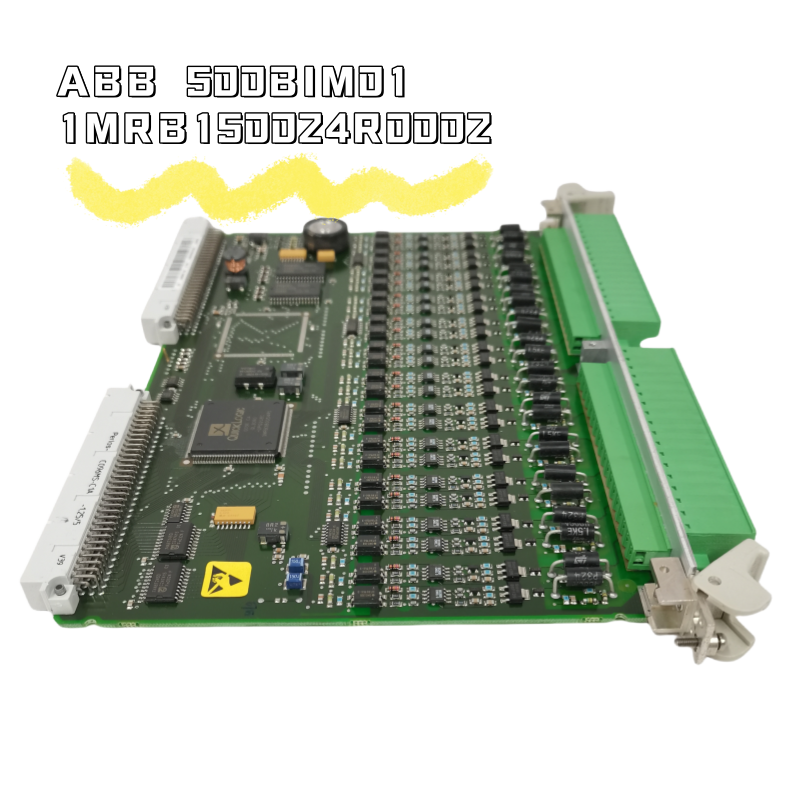

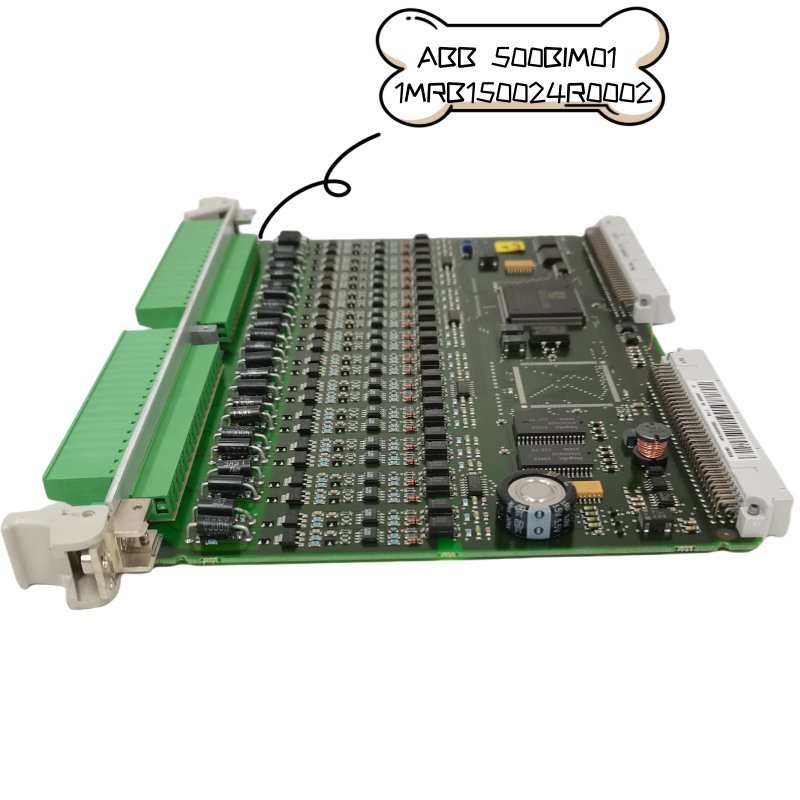

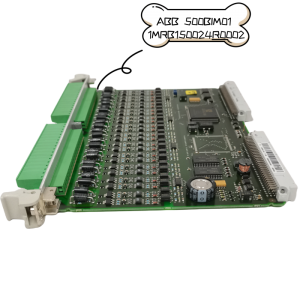

ABB 500BIM01 1MRB150024R0002 is a high-performance industrial bus interface module launched by ABB, which is an important component of the ABB 500 series automation product line. This module is designed specifically for industrial fieldbus communication, providing reliable device networking solutions and widely used in fields such as power automation, process control, and manufacturing execution systems.
Technical Parameter
Specification
Product model: 500BIM01 1MRB150024R0002
Product series: ABB 500 series
Manufacturer: ABB Group
Communication protocol: Supports mainstream industrial protocols such as Profibus DP and Modbus
Transmission rate: up to 12Mbps (protocol related)
Working voltage: 24VDC ± 10%
Power consumption: typical value 5W
Environmental parameters
Working temperature: -25 ° C to+70 ° C
Storage temperature: -40 ° C to+85 ° C
Relative humidity: 5% to 95% (without condensation)
Protection level: IP20 (to be installed inside the control cabinet)
mechanical properties
Size: 120mm x 80mm x 40mm (width x height x depth)
Weight: Approximately 350g
Installation method: 35mm standard DIN rail installation
Shell material: Flame retardant engineering plastic
Core functional features
Multi protocol support:
Compatible with Profibus DP-V0/V1
Optional Modbus RTU/TCP support
Support device level ring network (DLR)
High performance communication:
Data refresh cycle<10ms
Supports up to 128 I/O points
Built in communication diagnostic function
Industrial grade reliability:
Electromagnetic compatibility complies with EN 61000-6-2/4
The anti vibration performance complies with IEC 60068-2-6
Mean Time Between Failures (MTBF)>100000 hours
Convenient configuration:
Set node address by rotating the dip switch
Support online parameter configuration
The status LED indicator light displays the running status in real time

Typical application scenarios
Application in the power industry
Substation automation system
Distribution network monitoring
Generator Control
Process industry applications
Petrochemical DCS system
Process control in pharmaceutical factories
SCADA system for water treatment
manufacturing applications
Automobile production line control
Food and beverage packaging machinery
Semiconductor Manufacturing Equipment
Installation and Configuration Guide
Hardware installation steps
Confirm that the power has been disconnected
Insert the module into the DIN rail until it locks in place
Connect the 24VDC power cord (pay attention to polarity)
Connect fieldbus cables
Set node address dip switch
Software configuration process
Add devices to engineering software
Choose the correct communication protocol
Configure communication parameters (baud rate, etc.)
Download configuration to controller
Verify communication status
Maintenance and troubleshooting
Routine maintenance
Check the fastening status of connectors every month
Clean the surface dust of the module every quarter
Check the stability of the power supply voltage every year
Common fault handling
Possible causes and solutions for the phenomenon
Communication interruption: Bus terminal resistance not set correctly. Check and configure terminal resistance correctly
Module does not start. Check for reverse polarity of power supply and correct power supply wiring
Unstable communication, electromagnetic interference inspection, shielding layer grounding condition
ordering information
Standard packaging content
500BIM01 module body x 1
Installation manual x 1
Product Qualification Certificate x 1
Options
Communication cable joint kit (order number: 1MRB150024A001)
DIN rail mounting bracket (order number: 1MRB150024A002)
Backup Address Dial Switch (Order Number: 1MRB150024A003)
Quality Certification and Standards
CE certification (compliant with the EU Low Voltage Directive)
UL Certification (Document Number E123456)
IEC 61131-2 Programmable Controller Standard
EN 61000-6-2/4 Electromagnetic Compatibility Standard
Technical Support and Services
ABB provides comprehensive technical support for the 500BIM01 module:
24 month quality assurance
Free technical consultation hotline
On site service engineer support
Regular firmware update service
