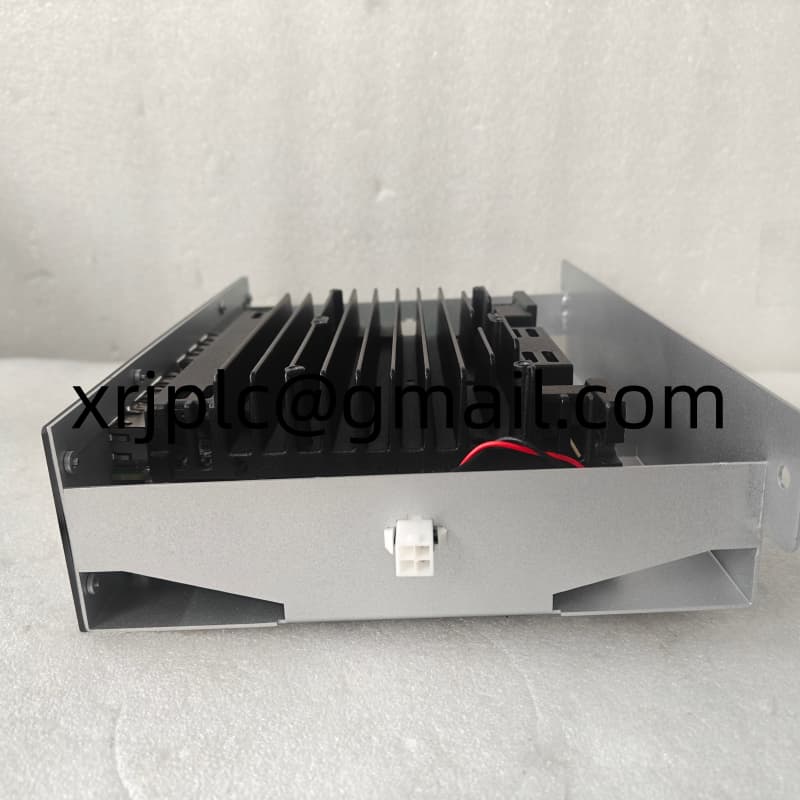

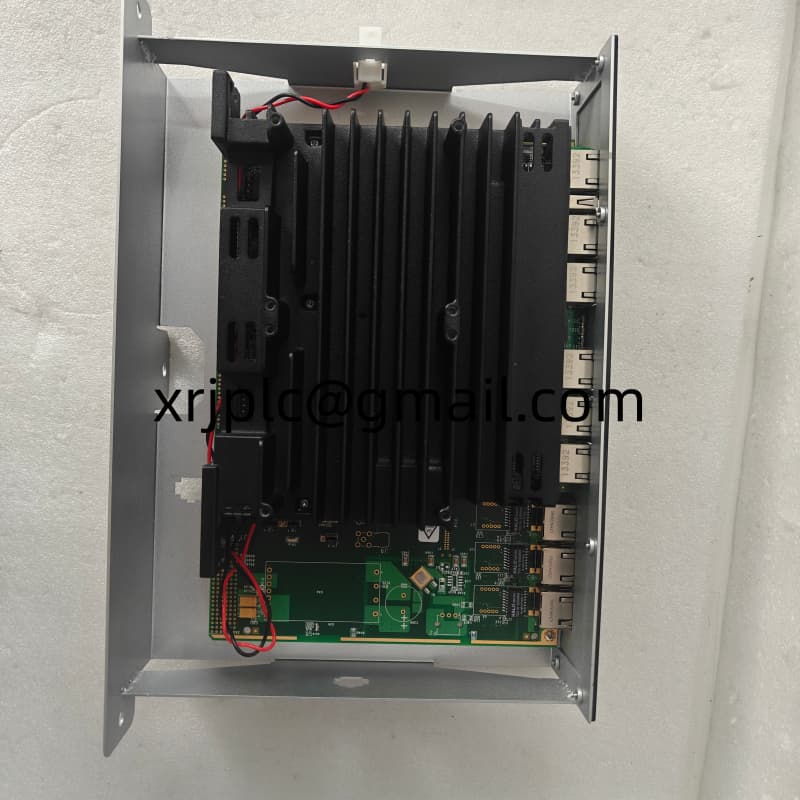

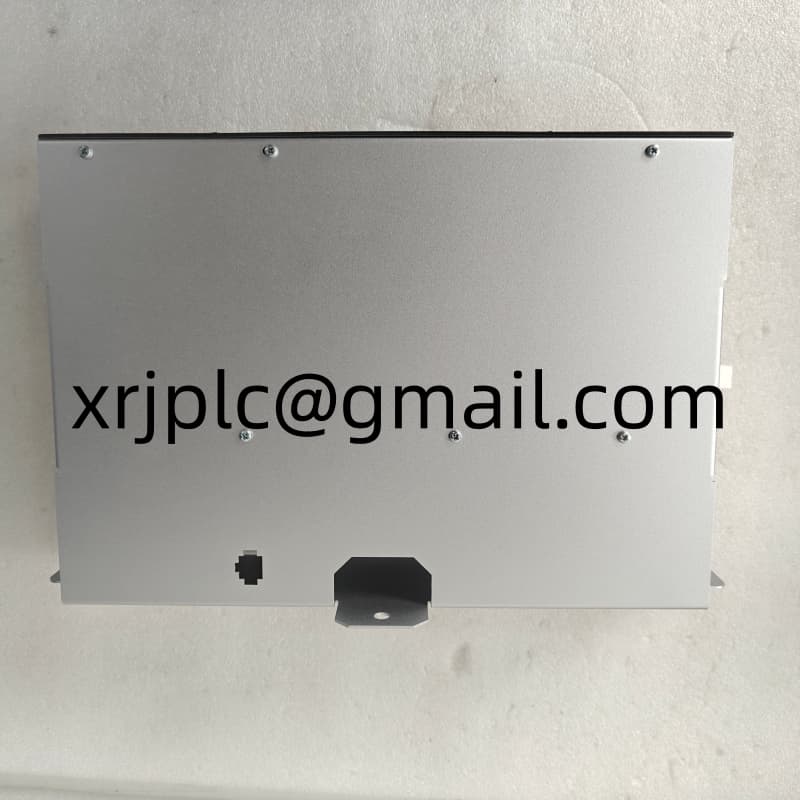

GE 151X1235BC01SA01 Product Introduction

1. Product Identification

• Brand: General Electric (GE)
• Model: 151X1235BC01SA01
• Series: Mark VIe / EX2100e Speedtronic
• Type: UCSB-CSLA Copper Cable Module / 10-slot Ethernet Switch
• Status: Active mainstream spare part; some batches are out of production from the original factory, and the market is mainly new/refurbished

2. Core Specifications

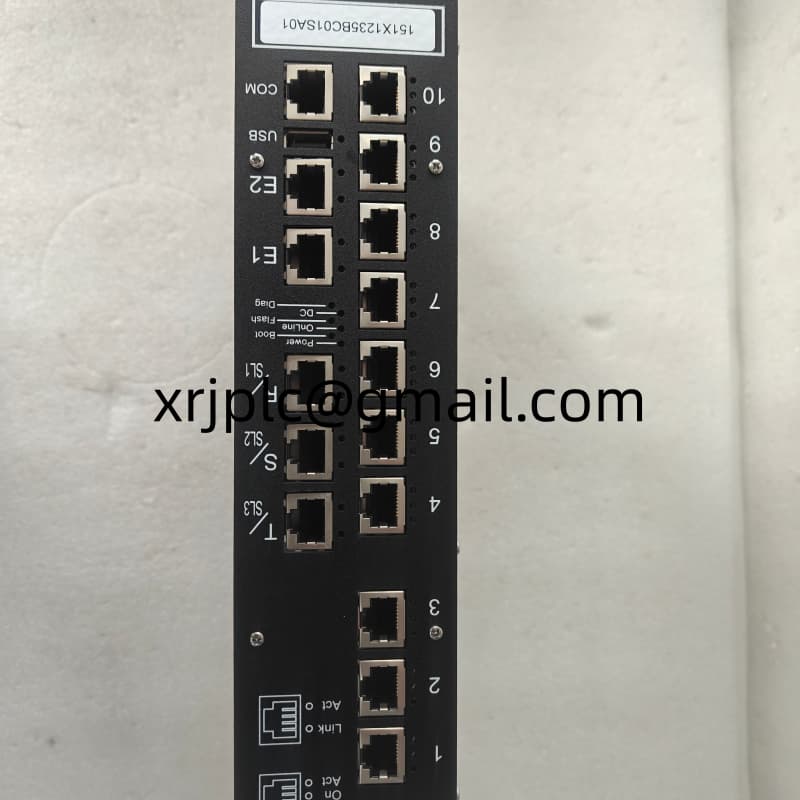

• Port Configuration: 10 × 10/100BASE-TX (RJ45), compliant with IEEE 802.3
• Transmission Rate: 10/100 Mbps (auto-negotiation)
• Power Supply: 24 VDC (±10%), support for redundant power supply
• Operating Temperature: -25°C ~ +70°C (industrial wide temperature)
• Mounting: Standard 19-inch rack / DIN rail (TS-35)
• Dimensions/Weight: Approx. 170×120×70 mm / 1.2 kg
• Protocol Support: TCP/IP, UDP, ICMP, Modbus, compatible with IONet
• Certifications: CE, UL, RoHS, IEC 61850-3

3. Key Features

• Turbine-level High Reliability: Designed specifically for power generation and turbine control, resistant to strong electromagnetic interference and vibration, supporting 24/7 continuous operation.
• Redundancy and Self-healing: Dual power supply redundancy and port link redundancy, automatic fault switching to ensure uninterrupted operation of critical networks.
• Plug-and-Play: Compatible with GE Mark VIe/EX2100e system, supporting hot-swapping to simplify deployment and maintenance.
• Strong Environmental Adaptability: Wide temperature range, dust-proof and vibration-resistant, suitable for harsh scenarios such as power plants, oil and gas, and chemical industries.
• Diagnosis and Monitoring: LED status indicators and remote network management, supporting real-time port status and fault location.

4. Typical Applications

• Power Generation Control: Interconnection of I/O and controllers in gas/steam turbines (Mark VIe) and EX2100e excitation systems.
• Industrial Processes: DCS/PLC networks, critical equipment monitoring, high-speed data acquisition and interlock protection.
• Data Centers: Industrial rack-mounted switches for edge computing and real-time control network aggregation.
