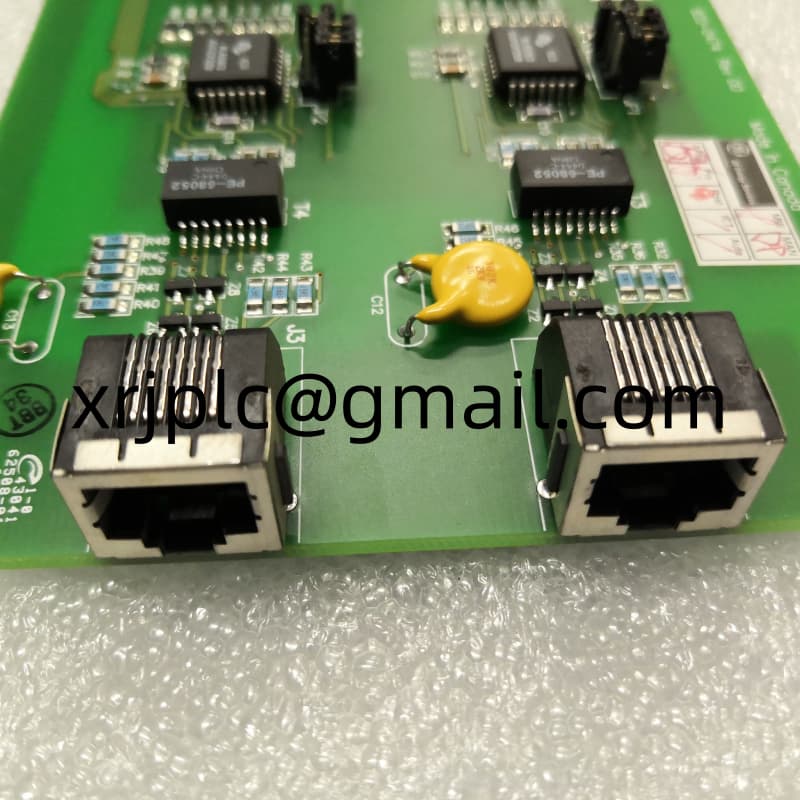

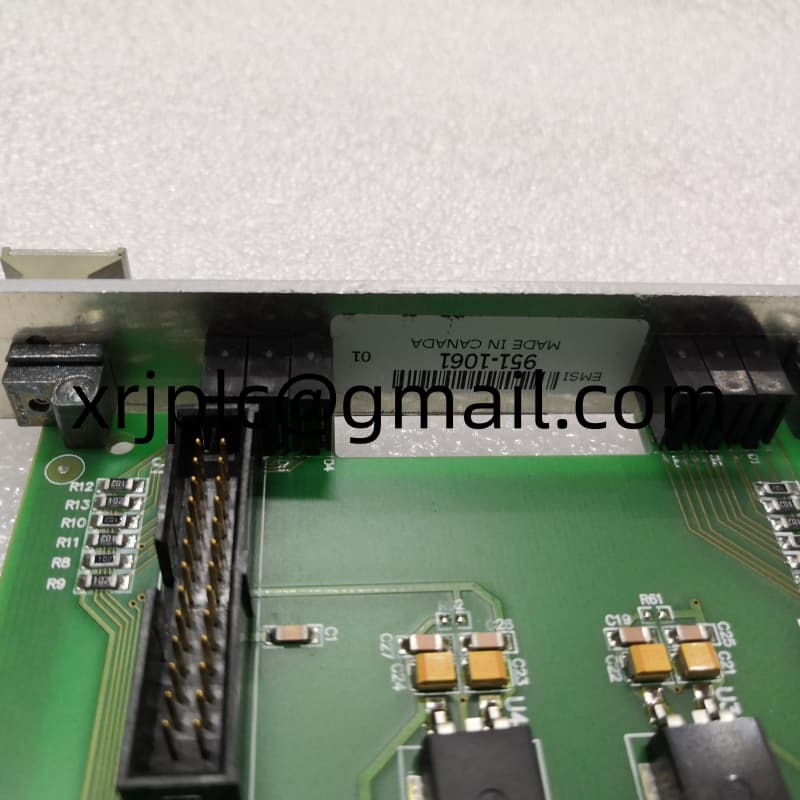

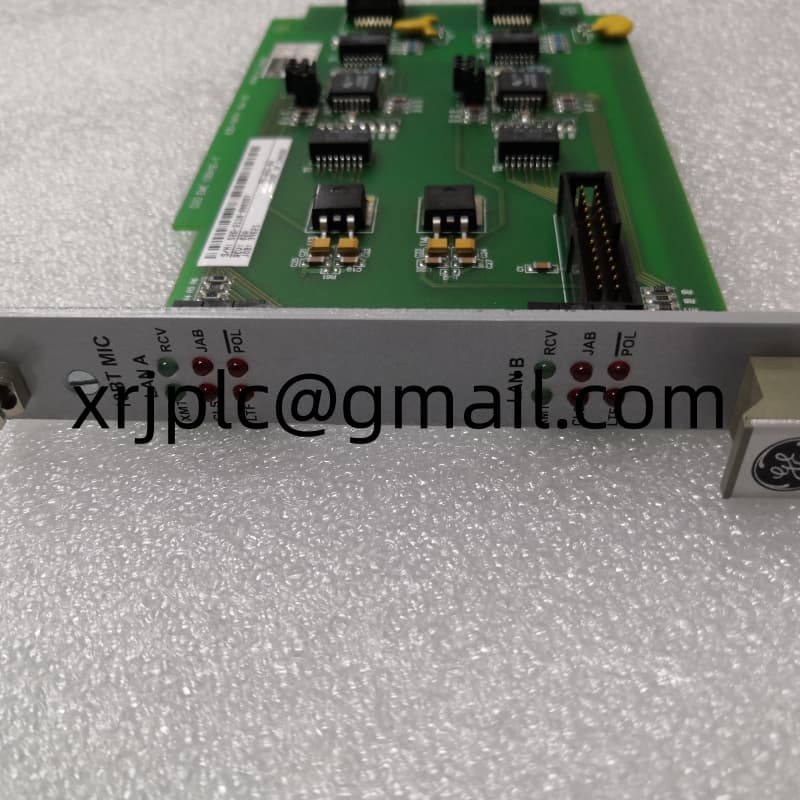

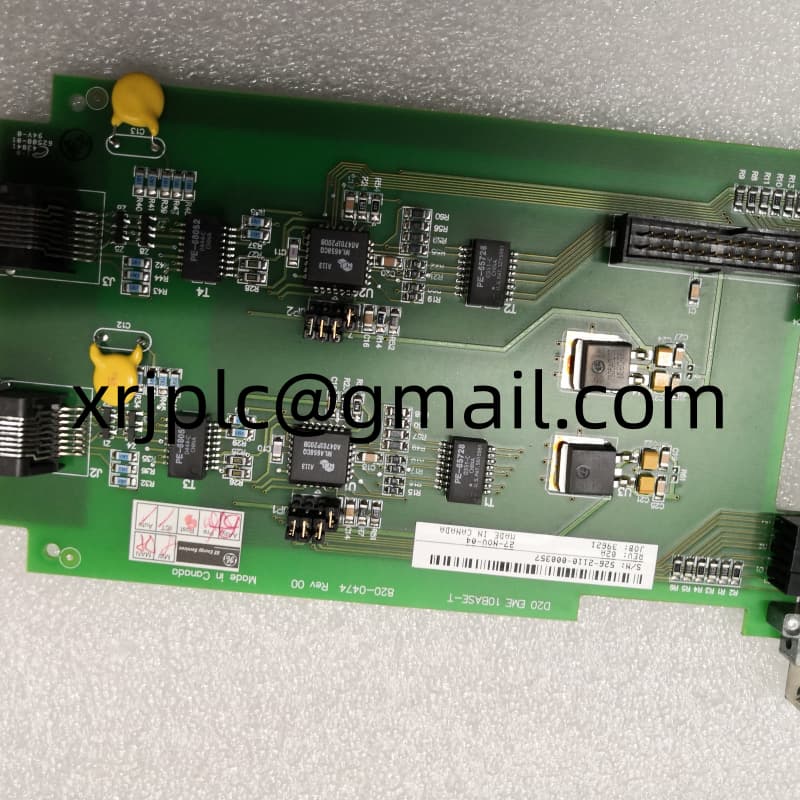

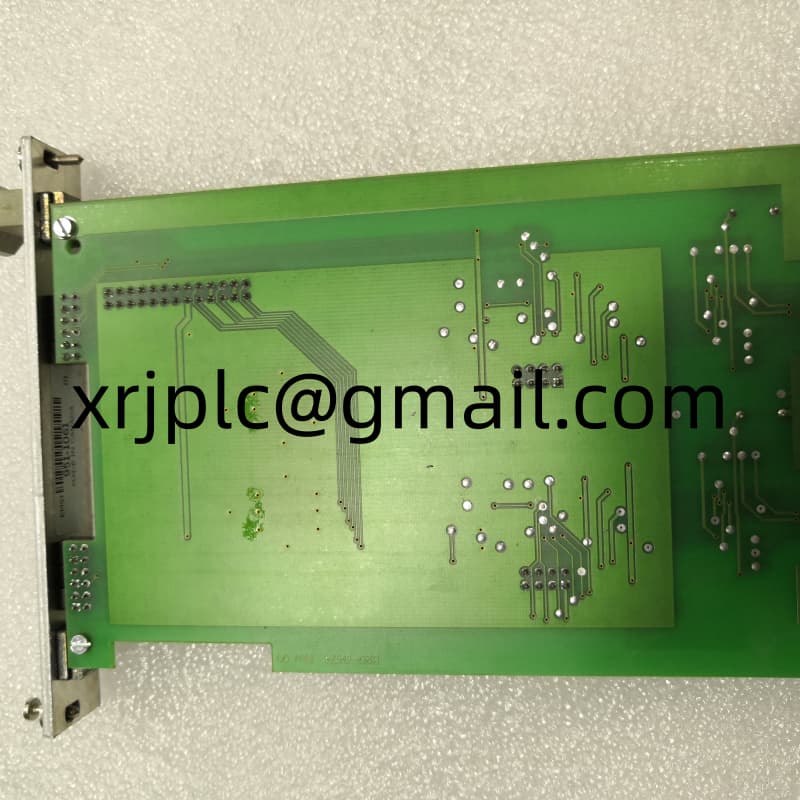

Product Introduction of GE 10BASE-T module

Short Description:

10BASE-T is a legacy Ethernet physical layer standard defined by IEEE 802.3i. GE refers to Gigabit Ethernet (1000BASE-T). There is no independent model named “GE 10BASE-T”. It generally represents GE network port devices that support 10/100/1000BASE-T auto-negotiation, such as Ethernet switches and network interface cards.

FOB Price: US $100 - 9,999 / Piece

Min.Order Quantity: 1 Piece/Pieces

Supply Ability: 3000Piece/Pieces per Month

Send email to us Download as PDF

Product Detail

IN Stock, 100% full New! Original Factory Seal !

Product Tags

GE 10BASE-T Product Introduction

1. Basic Overview

2. Core Standard Definition

10BASE-T: Transmission rate 10 Mbps, baseband transmission, twisted pair cable application, released under IEEE 802.3i.
GE / 1000BASE-T: Transmission rate 1000 Mbps (1 Gbps), adopts four-pair UTP cable, follows IEEE 802.3ab standard, backward compatible with 10/100 Mbps.
Naming Rule: Number = transmission speed (Mbps); BASE = baseband transmission; T = twisted pair.

3. Key Technical Parameters

Transmission Media: 10BASE-T uses Category 3 UTP cable; GE port adopts Cat5e/Cat6/Cat6A UTP cable with RJ45 interface.
Maximum Transmission Distance: 100 meters per network segment.
Network Topology: Star topology, connected via switch or hub.
Duplex Mode: 10BASE-T works at half-duplex; GE supports full-duplex with 1Gbps bidirectional bandwidth.
Auto-negotiation: GE port automatically negotiates rate and duplex mode among 10/100/1000 Mbps.

4. Main Features of GE 10BASE-T Devices

Commercial & Desktop Type

Full backward compatibility with 10BASE-T/100BASE-TX/1000BASE-T.
Plug-and-play, no complex configuration required.
Partial models support PoE power supply for AP and IP cameras.
Low power consumption and fanless silent design.

Industrial Grade Type

Wide temperature range: -40℃ ~ +75℃, suitable for harsh industrial environments.
IP30/IP40 protection grade, lightning protection and strong anti-EMI capability.
Dual power supply redundancy and ring network redundancy for uninterrupted network operation.

5. Application Scenarios

Industrial Automation: Network connection for PLC, sensors and industrial cameras, compatible with legacy 10Mbps devices and new gigabit equipment.
Enterprise Office Network: Gigabit desktop access, compatible with old network cards and printers to protect existing investment.
Security Monitoring: Connect IP cameras and NVR, support high-definition video transmission with backward compatibility.
Embedded System: Network port configuration for industrial computers and embedded motherboards, supporting low-rate communication and remote wake-up.

6. Selection Guidelines

Port quantity: Optional 4/8/16/24 RJ45 ports as required.
Rate capability: Confirm 10/100/1000 Mbps auto-adaptive support.
Application environment: Choose wide-temperature high-protection model for industrial scenarios; economic type for office use.
Management function: High-end & industrial models support VLAN, QoS and ring network redundancy; ordinary scenarios can use unmanaged type.

7. Summary

GE 10BASE-T refers to gigabit Ethernet devices backward compatible with 10BASE-T. Its core advantage is downward compatibility and smooth network upgrade. It retains the availability of legacy devices while providing gigabit bandwidth, widely applied in industrial automation, enterprise office, security monitoring and other fields。
