parameter：

Country of Origin:Sweden (SE)
Weight:7.4 kg
PFVA401

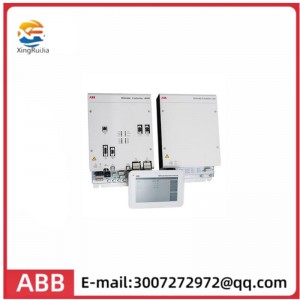

Millmate Controller 400 has been designed to offer a lot of functionalities and at the same time a high degree of user-friendliness.

MC 400 covers most mechanical arrangements. This means the user only has to follow the step-by-step instructions in order to set up the controller and to obtain correct roll force measurement.

Predefined standard measurement modes
Built-in load cell tables
Filter times from 1 up to 2000 ms
Easily configurable analog/digital inputs/outputs
Level detector
Step detector
Unit selection (N, kN, MN, kp, t, lb, T)
Self-diagnostic test system including transducer test

Data
External connections:

Excitation current to load cells
2 or 4 analog inputs for load cell signals
4 analog outputs, voltage or current
8 digital inputs for control signals
8 digital outputs
+24 V supply for external units, max. 0.5 A
Ethernet connection for service and multiple control units
2 serial interfaces of type RS-232 for external displays, control, etc.
1 serial interface of type RS-485 for external display
High-speed Profibus (optional)
PROPERTIES
Dimensions (H x W x D) two pieces :380 x 235 x 90 mm
Weight:5 kg + 7.4 kg
Protection class:IP 20

Mains voltage:85 – 264 V
Power consumption:650 VA

Operation temperature:
0 to +70°C
Storage temperature
-40 to +70°C

Analog outputs:
Voltage 0 – 10 V
Current 0 – 20 mA
4 – 20 mA
insulated as group
Step response 1 ms (0 – 90%)

Digital inputs:
0/+24 V, insulated 4 + 4
Digital outputs
0/+24 V, insulated 4 + 4

Millmate Controller 400 has been designed to offer a lot of functionalities and at the same time a high degree of user-friendliness.

The control unit covers all edge sensor installation possibilities. This means the user only has to follow the step-by-step instructions in order to set up the control unit and to have correct strip edge and center position and width calculated.

Calculates true strip position and width in relation to the mill
Filter times from 10 ms
Easily configurable analog/digital inputs/outputs
Digital edge position level detectors
Digital min. and max. width level detectors
Unit selection (mm, inch)
Self-diagnostic test system including continuous edge sensor test
Simulation mode for easy check of system integration

Data
External connections:

2 analog inputs for nominal thickness and nominal width setup
4 analog outputs, voltage or current
8 digital inputs for control signals
8 digital outputs
+24 V supply for external units, max. 0.5 A
Ethernet connection to:
- other Millmate control and operator unit
- other control systems with VIP protocol
2 serial interfaces of type RS-232 for external displays, control, etc.
High-speed fieldbus (optional)
