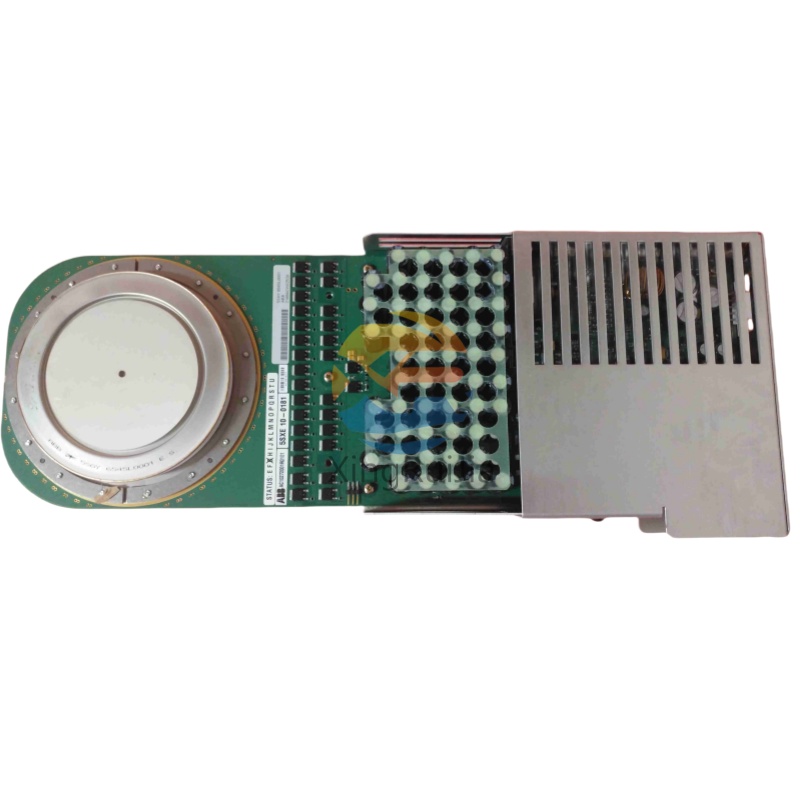

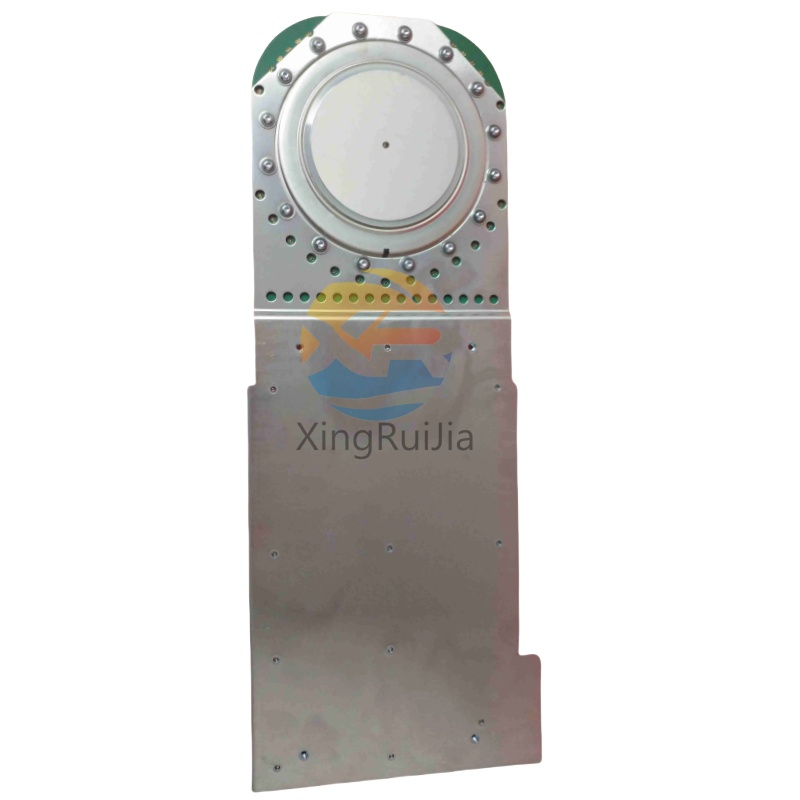

ABB 5SHY6545L0001 AC10272001R0101 5SXE10-0181: High-Power IGCT Module with Advanced Gate Unit for Industrial and Grid Applications

The ABB 5SHY6545L0001 is a top-tier Integrated Gate Commutated Thyristor (IGCT) module, forming the heart of high-power conversion systems. This specific IGCT device is seamlessly integrated and controlled by an advanced gate unit, often identified by part numbers such as AC10272001R0101 and 5SXE10-0181. Together, these components deliver an unmatched combination of efficiency, reliability, and precision control for the most demanding high-voltage and high-current industrial and utility applications. This integrated solution is essential for modern power electronics requiring robust performance and optimal energy management.

Revolutionizing Power Conversion with ABB’s Advanced IGCT System

The 5SHY6545L0001 IGCT stands out due to its ability to combine the low conduction losses characteristic of a thyristor with the fast turn-off capabilities of a gate turn-off (GTO) device. When paired with its dedicated, sophisticated gate unit (AC10272001R0101 / 5SXE10-0181), the entire assembly provides:

• Exceptional Energy Efficiency: Designed to minimize both conduction and switching losses, this system ensures maximum power conversion efficiency, which translates directly into significant operational cost savings and reduced thermal loads in high-power applications.
• Superior Reliability and Robustness: Built using ABB’s cutting-edge semiconductor technology and robust packaging, the 5SHY6545L0001, combined with its gate unit, offers high thermal cycling capability and long-term stability even under extreme operating conditions. This significantly extends the lifespan of the entire system.
• Precise and Rapid Switching: The integrated hard-drive technology within the gate unit (AC10272001R0101 / 5SXE10-0181) provides the strong, precise gate pulses required for the IGCT’s rapid turn-on and turn-off, enabling dynamic and accurate power flow control in high-frequency converters.
• Integrated Protection and Diagnostics: The intelligent gate unit continuously monitors critical parameters, offering comprehensive protection against overcurrents, overvoltages (via active clamping), and overtemperature conditions. It also provides valuable diagnostic feedback for proactive maintenance.
• High Power Density Solution: The optimized, compact design of the IGCT and its highly integrated gate unit allows for a greater power output within a smaller physical footprint, making it ideal for space-constrained power converter designs.
• Advanced Digital Integration: Gate units like the AC10272001R0101 often feature optical fiber interfaces, ensuring galvanic isolation and robust immunity to electrical noise. This facilitates reliable integration into sophisticated control systems, often compliant with standards like IEC 61850.

Detailed Product Parameters & Component Breakdown

Understanding the specific contributions of each part number is key to appreciating this integrated solution:

• ABB 5SHY6545L0001 (Core IGCT Device):
  • Device Type: Integrated Gate Commutated Thyristor (IGCT)
  • Rated Voltage (VDRM/VRRM): Typically 4500 V (4.5 kV). This signifies its capability for high-voltage blocking in both forward and reverse directions.
  • Average On-State Current (ITAV): While precise figures require the official datasheet, IGCTs of this rating handle extremely high currents, often several hundreds to thousands of Amperes, making them suitable for very high-power applications.
  • Surge Current (ITSM): Possesses a high non-repetitive surge current withstand capability, providing resilience during fault conditions.
  • Package: High-power disc-type (press-pack) package, optimized for efficient heat transfer and robust clamping into cooling systems.
  • Key Feature: Designed for ultra-low switching losses and high thermal cycling capability.
• ABB AC10272001R0101 / 5SXE10-0181 (IGCT Gate Unit):
  • Function: This is the sophisticated electronic control unit specifically designed to drive the 5SHY6545L0001 IGCT. It generates precise gate pulses, ensuring optimal switching performance and protecting the IGCT.
  • Key Features:
  • • Integrated Hard-Drive: Provides the necessary high current and voltage gate pulses for fast and reliable IGCT commutation.
    • Advanced Protection: Incorporates sophisticated protection features, including active clamping for overvoltage protection, overcurrent detection, and overtemperature monitoring.
    • Optical Fiber Interface: For complete electrical isolation between the control electronics and the high-voltage IGCT, ensuring safety and noise immunity.
    • Diagnostic Feedback: Provides status information and fault indications to the main control system.
    • Part Numbers: AC10272001R0101 is typically an assembly or module part number, with 5SXE10-0181 often being a core component or a more specific identifier for the gate unit type.
