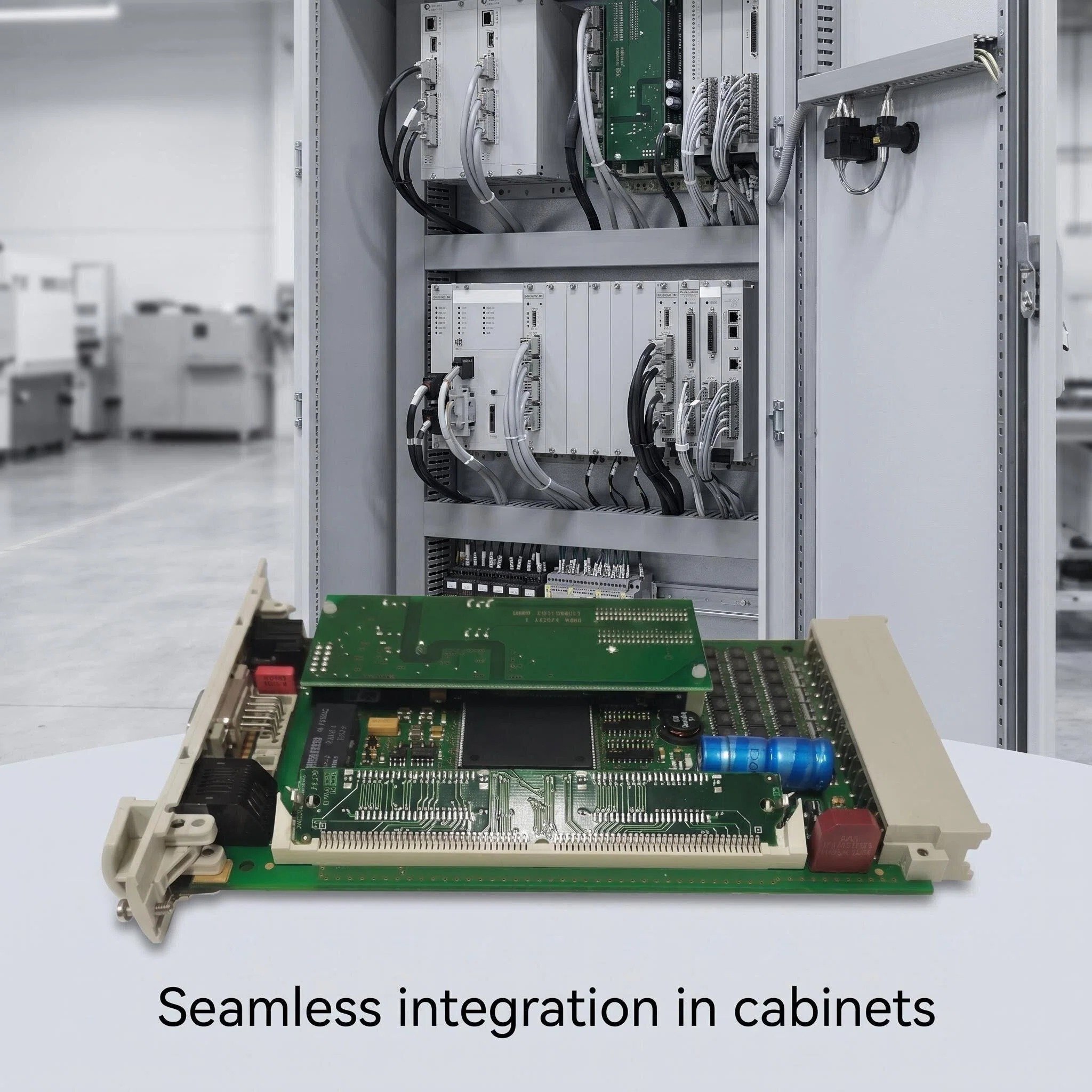

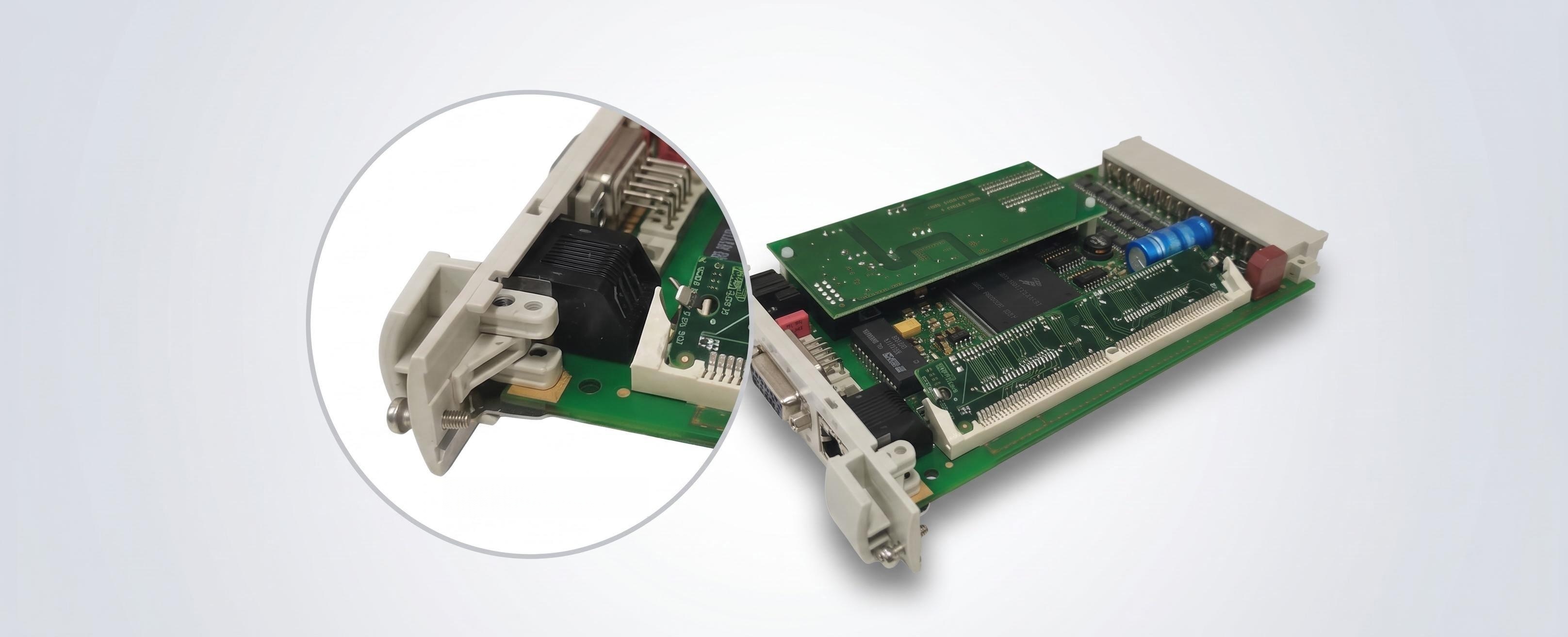

HIMA F3335是德国HIMA公司的安全型数字输出模块，用于其HIMatrix、HIQuad X、HIMax等安全仪表系统（SIS），核心面向SIL 3级安全关键场景。

一、所属系统
- HIMatrix（F35/F40/F60等）：紧凑型SIS，用于中小规模安全应用。
- HIQuad X（H51X/H41X）：中大型SIS，支持集中/分布式架构。
- HIMax：高端容错SIS，可达SIL 4，适合大型高可用场景。
二、核心用途
- 紧急停车系统（ESD）：异常时切断危险设备，保障安全。
- 燃烧管理系统（BMS）：控制燃烧器点火/熄火、阀门联锁。
- 安全联锁系统（SIL）：工艺超限（压力/温度/液位）时触发安全动作。
- 本质安全（Ex i）控制：驱动防爆阀门、变送器（ATEX II 2G Ex ib IIC）。
三、技术要点
- 4通道数字输出，24VDC，每通道500mA，带短路/开路线路诊断。
- SIL 3认证（IEC 61508），具备安全关断与隔离功能。
- 适配化工、油气、电力、制药等高危行业。

HIMA F3330 / F3334 / F3335

One-Page Selection Guide + Wiring Recommendation (English Version)

1. Key Specification & Selection Comparison Table

Item	F3330	F3334	F3335
Type	Digital Output Module	Digital Output Module	Digital Output Module
Channel Quantity	8 Channels	4 Channels	4 Channels
Operating Voltage	24 VDC	24 VDC	24 VDC
Rated Current per Channel	0.5 A	2 A	0.5 A
Line Diagnosis (Open/Short Circuit)	No	Yes	Yes
Intrinsic Safety Ex i Support	Not Supported	Not Supported	Supported
Safety Integrity Level	SIL 3	SIL 3	SIL 3
Compatible System	HIMatrix / HIQuad X / HIMax	HIMatrix / HIQuad X	HIMatrix / HIQuad X / HIMax
Typical Application	Ordinary solenoid valves, indicator lamps, small power non-Ex loads, high channel density saving cabinet slots	High-power solenoid valves, large coil relays, large bore pneumatic valves, heavy load without explosion-proof requirement	Chemical & petrochemical Ex hazardous area, ESD emergency shutdown, BMS burner management, safety interlock with diagnosis & Ex protection

2. Quick Selection Rule

Choose F3330: More channels, standard small power ordinary loads
Choose F3334: High current driving, heavy load, non-explosion area
Choose F3335: Intrinsic safety Ex i, ESD / BMS safety interlock system

3. General Wiring Guidelines

Power supply: Redundant 24 VDC external power supply with circuit breaker and surge protection.
Output type: PNP sourcing output; load connects to DO channel, the other end to 24 VDC negative.
Shielded twisted pair cable is recommended for field wiring; shield single-end grounded to avoid interference.
For diagnostic models F3334 / F3335: Do not parallel extra loads in the loop, otherwise line fault alarm will be triggered.

4. Model-Specific Wiring Advice

F3330

For non-Ex area 24VDC solenoid valves, indicator lights and small contactor coils. Direct one-to-one connection, simple layout for mass standard points.

F3334

For high-current pneumatic valves, large relays and high-power actuators. Use cable cross-section ≥ 1.5mm²; check voltage drop for long-distance wiring.

F3335

For Zone 0/1/2 chemical hazardous area, ESD & boiler BMS system. Must match with intrinsic safety isolator. Separate Ex and non-Ex cables strictly in different cable trays, no mixed laying.
